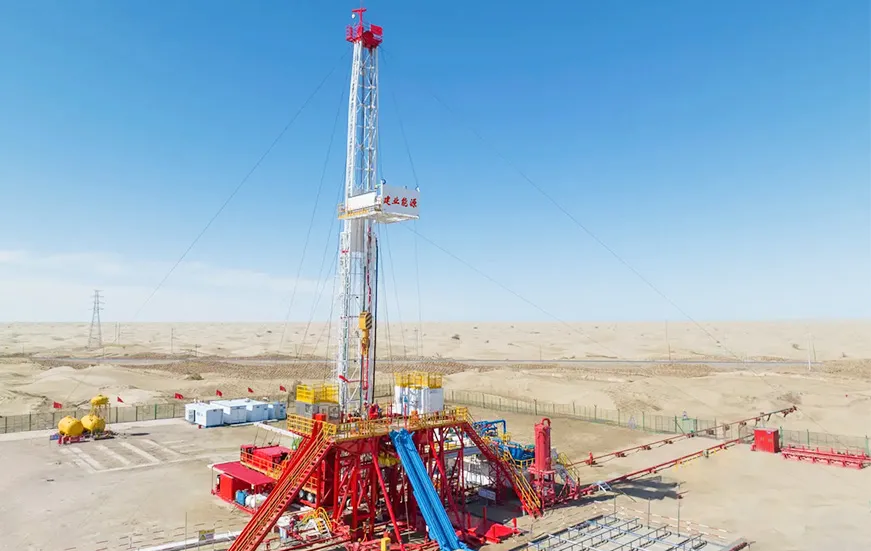

Complete set of automated well repair equipment

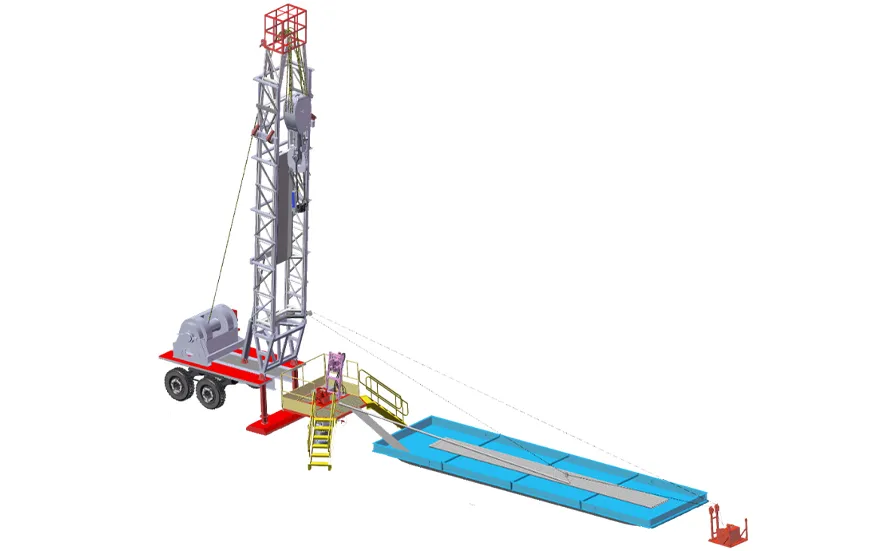

Complete sets of automated well repair operation equipment are divided into complete sets of minor repair automation operation equipment (XJ250-XJ450 full series) and complete sets of overhaul automation operation equipment (XJ450-XJ850 full series) according to tonnage. They are mainly composed of well site automation equipment, wellhead automation equipment, two-story table automation equipment, digital drilling control room and other modules.

Device List

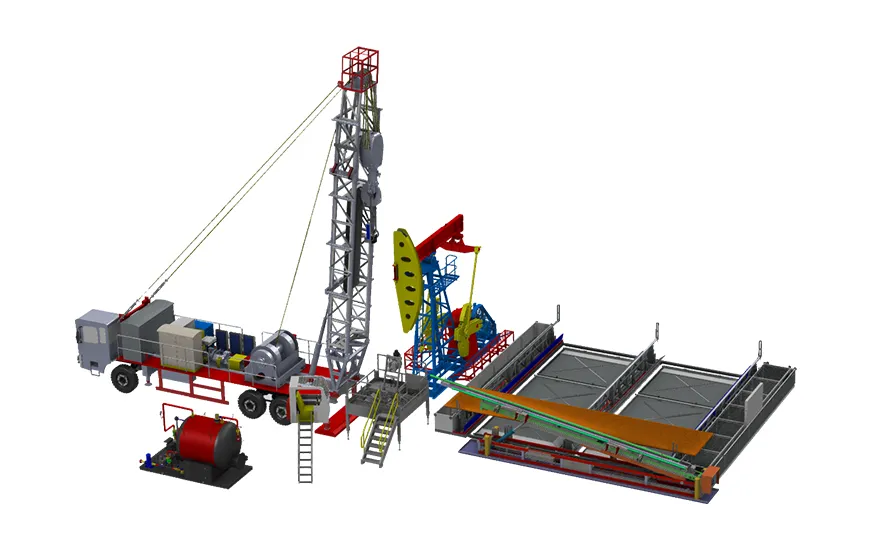

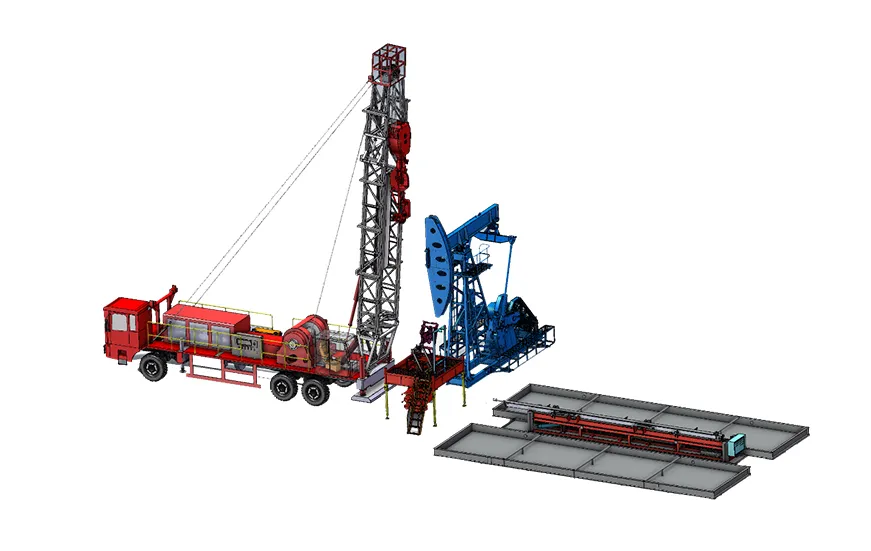

The XJ250-XJ450 series complete sets of minor repair automation equipment, providing high, medium and low-end complete sets of automatic well repair equipment, and as needed, hydraulic/electric lifting cards, wellhead operation robots, wellfield pipe rod conveyors/crapeline conveyors, environmentally friendly operating devices, digital drilling control rooms, lift pipe racks, blowout preventer electrical operation mechanisms and other devices can meet different customer needs, effectively improve operation safety, reduce operation labor intensity (about 40%), reduce work personnel (about 30%), reduce or do not increase additional relocation costs, and do not affect the timeliness of well repair operations.

Technical Advantages

High-end version

Mid-fitting version

Low version

Overhaul automated operation equipment

01

High-end version

Features of high-end version:

Safety: unmanned wellhead operation, well site automation operation, drilling remote control operation

Environmental protection: oil and water do not land, wellhead splash prevention operation

Energy saving: main drive, hydraulic clamp, and lifting card are all electric operations, which are more energy-saving and environmentally friendly.

02

Mid-fitting version

Features of the mid-suite version:

Safety: unmanned wellhead operation, well site automation operation, drilling remote control operation

Environmental protection: oil and water do not land, wellhead splash prevention operation

Cost: Low cost of supporting facilities, relocation and use

03

Low version

Features of low-end version:

Safety: wellhead machinery operation, well site mechanization operation

Environmental protection: oil and water do not land, wellhead splash prevention operation

Cost: low cost of supporting facilities, relocation, use

04

Overhaul automated operation equipment

The XJ450-XJ850 series complete sets of overhaul automated operation equipment provide high, medium and low-end complete sets of automated well repair equipment. It is equipped with two-story automatic robot arms, wellhead automation operation equipment (iron drilling/automated hydraulic pliers, wellhead robot arms, pneumatic/hydraulic tiles), wellsite automated pipe string processing system (power catwalk/lift pipe rack), digital drilling control room and other devices as needed to meet different customer needs, which can effectively improve operation safety, reduce operation labor intensity (about 40%), and reduce operation personnel (about 30%).

Features of overhaul automation operation equipment:

Second-level table: unmanned operation of automated robotic arms

Wellhead: Joint business of wellhead automation operation equipment

Well site: well site automation pipe column processing system combined with environmental protection operations

Operation: Digital drilling control room

Configuration list

XJ700dB

XJ900dB

XJ1100dB

XJ1350dB

XJ1580dB

XJ1800dB

XJ2250dB

XJ700DB (XJ250) electric energy storage well repair machine
(73mmEUE) Well repair depth m 3200
Maximum static hook load kN 700
Rated hook load kN 400
Big hook lift speed m/s 0.20-1.50
Moving system 3×4
Wire rope diameter mm φ22
Derrick height m 21,23,24 (double sections, hydraulic)
Driver form 8×4
Driving speed km/h  0-65
Minimum ground clearance (full load) mm 280
Minimum turning radius m 14
Total mass of the whole vehicle kg 35000
Class II chassis installed power kW 252
On-stage motor power kW 100
Energy storage battery capacity kWh 140
Maximum power of external power supply kW 40
No external power supply operation time h 3~4
External dimensions mm long 14000
Width 2550
high 4000


XJ900DB (XJ350) electric energy storage well repair machine
(73mmEUE) Well repair depth m 4000
Maximum static hook load kN 900
Rated hook load kN 600
Big hook lift speed m/s 0.25-1.5
Moving system 3×4
Wire rope diameter mm φ26
Derrick height m 21,23,24,29 (double sections, hydraulic)
Driver form 8×4
Driving speed km/h  0-65
Minimum ground clearance (full load) mm 300
Minimum turning radius m 14
Total mass of the whole vehicle kg 37000
Class II chassis installed power kW 294
On-stage motor power kW 180
Energy storage battery capacity kWh 186
Maximum power of external power supply kW 40
No external power supply operation time h 4~5
External dimensions mm long 13200
Width 2550
high 4000
XJ1100DB (XJ450) electric energy storage well repair machine
(73mmEUE) Well repair depth m 5500
Maximum static hook load kN 1100
Rated hook load kN 800
Big hook lift speed m/s 0.15~1.45
Moving system 4×5
Wire rope diameter mm φ26, φ29
Derrick height m 21,23,24,29 (double sections, hydraulic)
Driver form 8×4
Driving speed km/h  0-45
Minimum ground clearance (full load) mm 300
Minimum turning radius m 15
Total mass of the whole vehicle kg 47000
Class II chassis installed power kW 390
On-stage motor power kW 262
Energy storage battery capacity kWh 186
Maximum power of external power supply kW 40
No external power supply operation time h 3~4
External dimensions mm long 15700
Width 2550
high 4000
XJ1350DB (XJ550) electric energy storage well repair machine
(73mmEUE) Well repair depth m 7000
Maximum static hook load kN 1350
Rated hook load kN 1000
Big hook lift speed m/s 0.15~1.45
Moving system 4×5
Wire rope diameter mm φ26, φ29
Derrick height m 35 (double section, hydraulic)
Driver form 10×8
Driving speed km/h  0-45
Minimum ground clearance (full load) mm 310
Minimum turning radius m 15
Total mass of the whole vehicle kg 55000
Self-propelled chassis installed power kW (CAT C15)354
On-stage motor power kW 330
Energy storage battery capacity kWh 331
Maximum power of external power supply kW 80
No external power supply operation time h 3~4
External dimensions mm long 19870
Width 3100
high 4200
Drilling table height m 4.5
Drilling table top m 4×5


XJ1580DB (XJ650) electric energy storage well repair machine
(73mmEUE) Well repair depth m 8500
Maximum static hook load kN 1580
Rated hook load kN 1200
Big hook lift speed m/s 0.15~1.45
Moving system 4×5
Wire rope diameter mm φ26, φ29
Derrick height m 35 (double section, hydraulic)
Driver form 12×8
Driving speed km/h  0-45
Minimum ground clearance (full load) mm 310
Minimum turning radius m 15
Total mass of the whole vehicle kg 65000
Self-propelled chassis installed power kW (CAT C18)469
On-stage motor power kW 430
Energy storage battery capacity kWh 419
Maximum power of external power supply kW 80
No external power supply operation time h 3~4
External dimensions mm long 19900
Width 3100
high 4370
Drilling table height m 4.5
Drilling table top m 4×5


XJ1800DB (XJ750) electric energy storage well repair machine
(2 7/8 drilling rod) well repair depth m 8000
Maximum static hook load kN 1800
Rated hook load kN 1500
Big hook lift speed m/s 0.11~1.15
Moving system 5×6
Wire rope diameter mm φ32
Derrick height m 36/38 (double section, hydraulic)
Driver form 14×8
Driving speed km/h  0-45
Minimum ground clearance (full load) mm 270
Minimum turning radius m 21
Total mass of the whole vehicle kg 72000
Self-propelled chassis installed power kW (CAT C18)469
On-stage motor power kW 500
Energy storage battery capacity kWh 419
Maximum power of external power supply kW 120
No external power supply operation time h 2~3
External dimensions mm long 22300
Width 3000
high 4450
Drilling table height m 6
Drilling table top m 6×7 or 7.5×7.4


XJ2250DB (XJ850) electric energy storage well repair machine
(2 7/8 drilling rod) well repair depth m 9000
Maximum static hook load kN 2250
Rated hook load kN 1800
Big hook lift speed m/s 0.11~1.15
Moving system 5×6
Wire rope diameter mm φ32
Derrick height m 38 (double section, hydraulic)
Driver form 14×10
Driving speed km/h  0-45
Minimum ground clearance (full load) mm 270
Minimum turning radius m 21
Total mass of the whole vehicle kg 75000
Self-propelled chassis installed power kW (CAT C18)469
On-stage motor power kW 660
Energy storage battery capacity kWh 560
Maximum power of external power supply kW 120
No external power supply operation time h 3~4
External dimensions mm long 22300
Width 3050
high 4450
Drilling table height m 7
Drilling table top m 6×7 or 7.5×7.4
