Electric drive well repair vehicle
The full series of electric drive well repair vehicles of XJ250-XJ450 are divided into direct drive electric drive well repair vehicles and new energy powertrain well repair vehicles according to the structure. They use a small grid of oil and gas wells with small grid power supply of 15-50kVA and lithium iron phosphate batteries to store energy, and realize 6,000-meter deep electric drive operation, reducing energy consumption of well repair operations by 80%, reducing operation site noise, and reducing operation vehicle maintenance costs.
| Rated hook load | 400kN | 600kN | 800kN |
| Maximum static hook load | 700kN | 900kN | 1125kN |
| Derrick height | 18m/21m | 21m | 21m/24m |
| Moving system | 3×4 | 3×4 | 4×5 |
| Motor power | 160kW | 180kW | 220kW |
| Lift the wire rope diameter | φ22mm | φ22mm | φ26mm |
| Big hook speed | 0.2-1.5m/s | 0.2-1.5m/s | 0.2-1.5m/s |
| Battery capacity | 140kWh | 180kWh | 180kWh |
| Brake system | With brake/disk brake | With brake/disk brake | Disc brake/assisted brake |
Technical Advantages
01

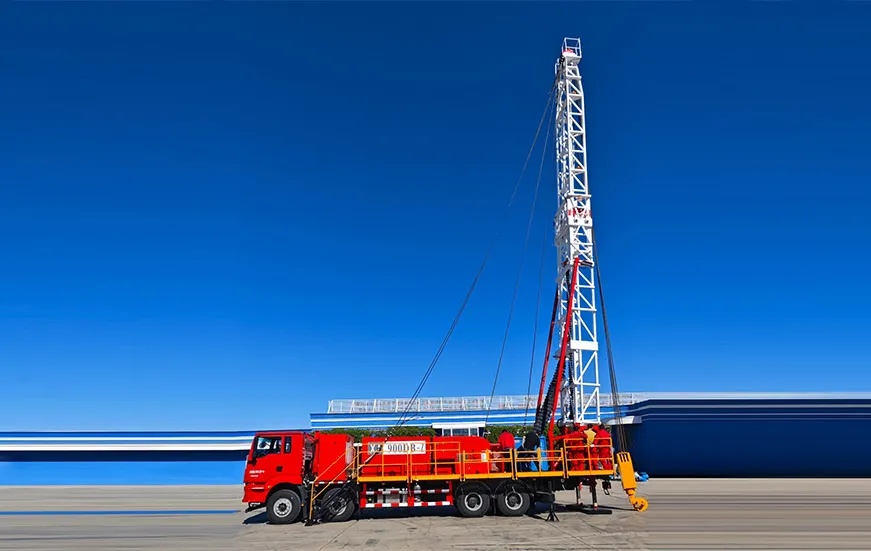

Direct drive electric drive well repair vehicle
The full series of direct drive series of XJ250-XJ450 is driven by a 160kW-220kW AC variable frequency direct drive motor, which has higher transmission efficiency.
Direct drive features:
Energy saving and environmental protection, cost reduction and efficiency improvement, and reduce operating energy consumption by 80%;
Direct drive structure, simpler structure and higher transmission efficiency
Motor energy consumption braking and lowering energy feedback/hovering as auxiliary brake
Quickly move, low operation noise
02

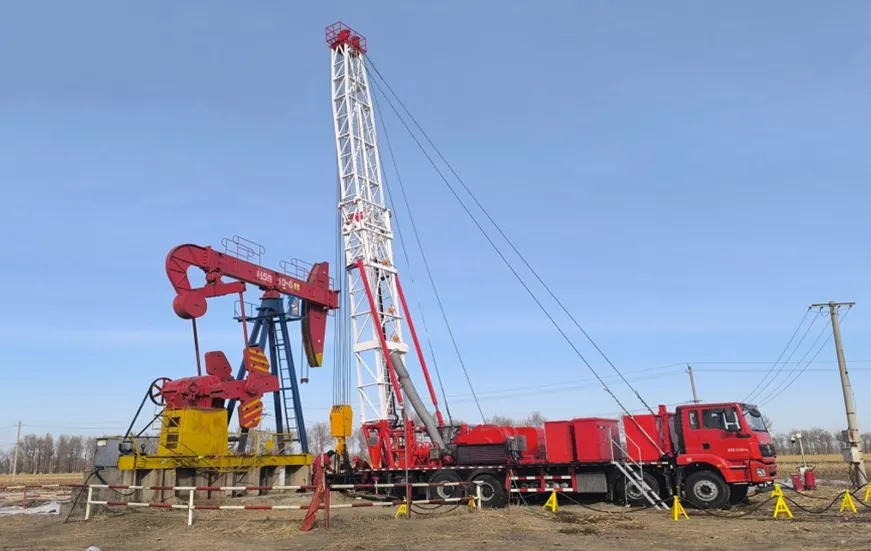

New energy powertrain well repair vehicle
The full series of direct drive series of XJ250-XJ450 is driven by a 180kW-260kW new energy powertrain, which has stronger power.
Features of new energy powertrain:
Energy saving and environmental protection, cost reduction and efficiency improvement, and reduce operating energy consumption by 80%;
The powertrain of the well repair machine with the same tonnage is stronger and the efficiency of improvement is higher;
Motor energy consumption braking and lower energy feedback/hovering as auxiliary brakes;
The entire system is equipped with standard liquid cooling circulation, which is more suitable for winter and summer and extreme weather operations;
Fast movement and low operation noise;
More cost-effective
